All-Steel Foundation System — Dirt

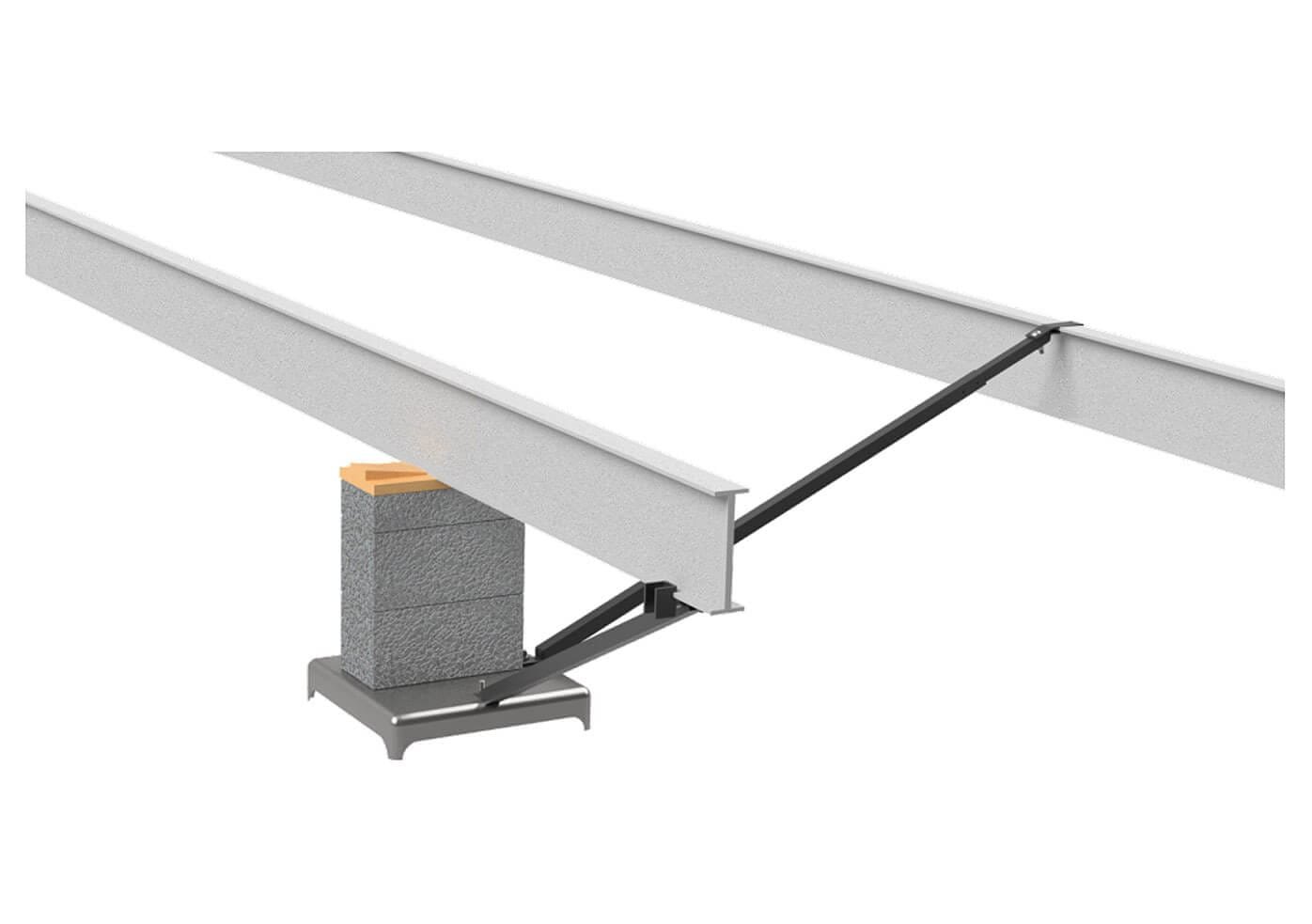

ASFS 1102 SOLO system for dirt and soil installations — an innovative all-steel alternative to conventional anchor systems.
The Oliver Technologies ASFS 1102 SOLO foundation system for dirt installations provides an integrated all-steel foundation solution for manufactured homes installed on natural soil surfaces. This system eliminates the need for separate anchors, straps, and connectors by combining pier support and tie-down resistance into a single engineered structure. Rated for soil classifications up to 4B across all US wind zones, the dirt installation variant is designed to anchor directly into natural earth without requiring a concrete foundation, making it ideal for rural installations, temporary sites, and locations where concrete pours are impractical.
Installation Instructions
All-Steel Foundation for Natural Soil Sites
The dirt installation variant of our ASFS 1102 SOLO system is designed for manufactured homes installed directly on natural soil surfaces. This system provides the same integrated foundation and tie-down benefits as the concrete version, but anchors directly into the earth without requiring a prepared concrete foundation.
Ideal Applications
- Rural and remote installation sites
- Locations where concrete pours are impractical
- Temporary or semi-permanent installations
- Sites with soil classifications up to 4B
- Installations requiring reduced setup time
Key Features
Specifications
ASFS 1102 SOLO Dirt — Pier Height & Arm Length
| Pier Height Range | Arm Length |
|---|---|
| 12" – 24" | 39" |
| 12" – 32" | 44" |
| 12" – 40" | 54" |
| 12" – 48" | 65" |
ASFS 1102 SOLO Dirt — Product Numbers
| Product # | Description | Finish |
|---|---|---|
| 1102 SOLO ITCVD | Lateral Protection Only | Painted |
| 1102 SOLO ITCVDG | Lateral Protection Only | Galvanized |
| 1102 SOLO DRY-39 | Longitudinal & Lateral — 39" Arms | Painted |
| 1102 SOLO DRY-39G | Longitudinal & Lateral — 39" Arms | Galvanized |
| 1102 SOLO DRY-44 | Longitudinal & Lateral — 44" Arms | Painted |
| 1102 SOLO DRY-44G | Longitudinal & Lateral — 44" Arms | Galvanized |
| 1102 SOLO DRY-54 | Longitudinal & Lateral — 54" Arms | Painted |
| 1102 SOLO DRY-54G | Longitudinal & Lateral — 54" Arms | Galvanized |
| 1102 SOLO DRY-65 | Longitudinal & Lateral — 65" Arms | Painted |
| 1102 SOLO DRY-65G | Longitudinal & Lateral — 65" Arms | Galvanized |
DRY = dirt/soil installation (driven in). Choose arm length based on required pier height. Galvanized recommended for high-moisture soils and Wind Zone II/III.
